Low Pressure Steel Cryogenic Air Separation Plant 2800kw For Oxygen Production

Low Pressure Steel Cryogenic Air Separation Plant 2800kw For Oxygen Production supplier Low Pressure Steel Cryogenic Air Separation Plant 2800kw For Oxygen Production supplier

Large Image :  Low Pressure Steel Cryogenic Air Separation Plant 2800kw For Oxygen Production

Product Details:

Place of Origin:Zhejiang ,China ( mainland)
Brand Name:UIG
Certification:ISO 9001:2000
Model Number:KDO,KDN,KDON,KLN,KZO

Payment & Shipping Terms:

Minimum Order Quantity:1 SET
Price:Negotiation
Packaging Details:Sea Worthy Packing
Delivery Time:120 Days
Payment Terms:T/T ,L/C
Supply Ability:2-3 Sets Per Month
Detailed Product Description
Gox Purity: ≥99.7 Operating Pressur: 1.2Mpa|1Mpa
Power: 76-2800 KW Product Name: Cryogenic Air Separation Unit
Production Capacity: 50-3000 M3/hour Voltage: 380v,10000V

Low Pressure Steel Cryogenic Air Separation Plant 2800kw For Oxygen Production





Quick Details:



Condition: new

Place of origin: China(mainland)

Brand name: UIG

Model number: KDO,KDN,KDON,KLN ,KZO SERIES

Production capacity:50-3000 m3/hour

Power :76-2800 KW

Voltage:380v,10000V

Certification: ISO 9001:2000

Warranty:1 year

Life:20 years with proper maintenance

After-sales service provided: Engineers available to service plants overseas

Usage: Industrial and medical (oxygen, liquid oxygen, nitrogen, liquid nitrogen)

UIG Air separation plants are designed for a vast range of capacities and products summarized below: FOR OXYGEN 99.7 % AND NITROGEN 99.999%



Specifications:



Two compression methods:

1)Internal compression air separation plants:

Air-Compressed-Pre-cooling-Purifier-Rectification-heart exchanger (low pressure liquid)-Liquid oxygen pump(pressurized liquid oxygen)-oxygen vaporizer - oxygen cylinders

2)External compression air separation plants:

Air-Compressed-Precooling-Purifier-Rectification-heart exchanger (low pressure gas)-oxygen storage-oxygen compressor(pressurized oxygen)-oxygen cylinders

 The main technical specifications of internal compression

Model contents

KZON-

50/50

KZON-

80/80

KZON-

100/100

KDON-

180-20

KDON-

300-50

KDON-

350-80

KDON-

500-150

KDON-

800-200

KDON-

1000-300

Gox flow

Nm³/h

50

80

100

180

300

350

500

800

100

Gox purity

%(O2)

≥99.7

≥99.7

≥99.7

≥99.7

≥99.7

≥99.7

≥99.7

≥99.7

≥99.7

Gan flow

Nm³/h

50

80

100

20

50

80

150

200

300

Gan purity

Ppm(O2)

≤10

≤10

≤10

≤10

≤10

≤10

≤10

≤10

≤10

Operating

 pressure

Mpa



1.2

1.2

1.2

1

1

1

1

1

1

Start-up time

hour

≤12

≤12

≤12

≤10

≤10

≤8

≤8

≤8

≤8

Operating

period

year

≥1

≥1

≥1

≥1

≥1

≥1

≥2

≥2

≥2



Oxygen filling (or booster) with liquid pump.



The Plant uses normal temperature molecular sieve adsorption, medium pressure booster expansion reflux flow.

Raw air is sucked from the atmosphere,It is going through filter for removal of dust and mechanical impurities.,then it is compressed to a certain degree by single stage screw compressor,via end stage cooler, air pre-cooling system, the air is cooled to approx. 8℃. After water separation moisture is separated in water separator and then it goes to purifier for removal of moisture, CO2, C2H2 and hydrogen dioxide.

Then most part of air enters main heat exchanger to be cooled to saturated tempt. and partly is liquefied to the lower part of lower column; another part of air is compressed to a certain degree through two stage compression booster, via end stage cooler enters into oxygen heat exchanger to be cooled to be near saturated temperature, then after throttle goes to lower column. Through lower column pre-distillation we can get enriched oxygen liquid air from the bottom of the column. After cooling through sub-cooler,after throttled it goes to the middle part of upper column as reflux liquid for rectification. WN is obtained from the top of lower column, after condensed through condenser-evaporator, a part of WN is used as rectification reflux liquid for lower column; another part after cooling through sub-cooler and after throttling goes to the top of upper column as rectification reflux liquid. Pure liquid oxygen is obtained from the bottom of upper column, and it is condensed by condenser-evaporator. Liquid oxygen is abstracted from the bottom after cooling through sub-cooler, then it goes to LOX pump to be pressurized. It is evaporated in O2 heat exchanger and is reheated to normal tempt and then directly goes to oxygen filling ramp for filling of cylinders.

WN from the top of upper column goes through sub-cooler, the ower part of main heat exchanger to be reheated to a certain tempt. Then it goes to expansion turbine to create cold and returns to sub-cooler and main heat exchanger again to be reheated to normal tempt. A part of it passes to purifier as regenerating gas resource and another part goes to be vented partly.



 The main technical specifications of external compression

Model contents

KDON-

80/200

KDON-

180/500

KDON-

350/800

KDON-

550-1000

KDON-

750-1500

KDON-

1000-2000

KDON-

1500-3000

KDON-

3000-3000

Gox flow

Nm³/h

80

180

350

550

750

1000

1500

3000

Gox purity

%(O2)

99.7

99.7

99.7

99.7

99.7

99.7

99.7

99.7

Gan flow

Nm³/h

200

500

800

1000

1500

2000

3000

3000

Gan purity

Ppm(O2)

≤10

≤10

≤10

≤10

≤10

≤10

≤10

≤10

Operating

 pressure

Mpa

0.65

0.63

0.62

0.6

0.58

0.58

0.56

0.56

Start-up time

hour

≤18

≤18

≤18

≤18

≤18

≤18

≤20

≤20

Operating

period

year

≥1

≥1

≥1

≥1

≥1

≥2

≥2

≥2



Oxygen filling(or booster)with oxygen compressor.



Description:



•External compression air separation plant:

Air-Compressed-Pre-cooling-Purifier-Rectification-heat exchanger (low pressure gas)-oxygen storage-oxygen compressor(pressurized oxygen)-oxygen cylinders or Pipeline supply.

• Basic configuration of this air separation plant:

  (1) Air compressor (Oil lubrication screw type or oil-free type)        1 set

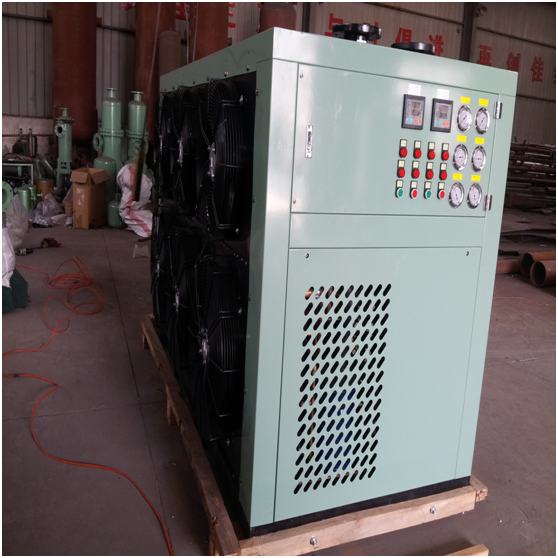

  (2) Air pre-cooling unit (Close frame structure)            1 set

  (3) Molecular sieve purification system                  1 set

  (4) Rectification column system (Cold Box)              1 set

  (5)Turbo expander                                   1 set

  6) oxygen storage                                    1set

7)oxygen compressor                               1set

8)Instruments & electrical system                     1 set

•For the purpose of safety operation for long time, certain liquid in condenser-vaporizer are drawn out of column regularly, by doing so, it can be avoid the accumulation of hydrocarbon, especially for acetylene.



Applications:



we supplied to many countries (Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania) .

Low Pressure Steel Cryogenic Air Separation Plant 2800kw For Oxygen Production

Competitive Advantage:



High reliability. Low pressure process. Low power consumption. Short time delivery. Good service.



Cryogenic air separation plant,Liquid air separation plant,Industrial air separation plant,Medical air separation plant
,Skid mounted air separation plant,Small size air separation plant,Small-medium size air separation plant
,Medium size air separation plant,High purity air separation plant,Steel air separation plant,Chemical industry air separation plant,Low pressure air separation plant
