6000 m³ / h Air Separation Equipment , 5000 KW ASU Plant For 99.7 % Oxygen

Good Quality Air Separation Plant on sale
Good Quality Cryogenic Air Separation Plant on sale
The quality and service are good, delivery time is punctual every time.

—— Russian Seles

My customer is very satisfied with your sample, now we place an order with you.

—— Russian Porova

I'm Online Chat Now

6000 m³ / h Air Separation Equipment , 5000 KW ASU Plant For 99.7 % Oxygen

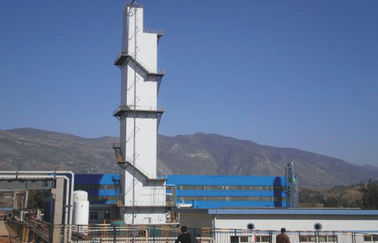

6000 m³ / h Air Separation Equipment , 5000 KW ASU Plant For 99.7 % Oxygen supplier 6000 m³ / h Air Separation Equipment , 5000 KW ASU Plant For 99.7 % Oxygen supplier 6000 m³ / h Air Separation Equipment , 5000 KW ASU Plant For 99.7 % Oxygen supplier

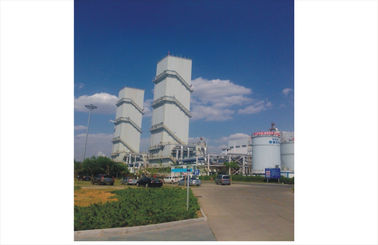

Large Image :  6000 m³ / h Air Separation Equipment , 5000 KW ASU Plant For 99.7 % Oxygen

Product Details:

Place of Origin:Zhejiang ,China ( mainland)
Brand Name:UIG
Certification:ISO 9001:2000
Model Number:KDON, KDONAr

Payment & Shipping Terms:

Minimum Order Quantity:1 SET
Price:Negotiation
Packaging Details:Sea Worthy Packing
Delivery Time:120 Days
Payment Terms:T/T ,L/C
Supply Ability:2-3 Sets Per Month
Detailed Product Description
Gan Flow: 2000,3000,4500,8000Nm³/h Gan Purity: ≤10Ppm(O2)
Gox Flow: 1000,1500,3000,4500,6000Nm³/h Gox Purity: 99.6%
Power: 1000-5000 KW Product Name: Air Separation Unit
Production Capacity: 1000-6000 M3/hour Voltage: 380v,6000V,10000V

6000 m³ / h Air Separation Equipment , 5000 KW ASU Plant For 99.7 % Oxygen



Quick Details:



Condition: new

Place of origin: China(mainland)

Brand name: UIG

Model number: KDON, KDONAr, SERIES

Production capacity:1000-6000 m3/hour

Power :1000-5000 KW

Voltage:380v,6000V,10000V

Certification: ISO 9001:2000

Warranty:1 year

Life:20 years with proper maintenance

After-sales service provided: Engineers available to service plants overseas

Usage: Industrial and medical (oxygen,liquid oxygen,nitrogen,liquid nitrogen,argon)

UIG Air separation plants are designed for a vast range of capacities and products summarized below: FOR OXYGEN 99.7 % ,NITROGEN 99.999% AND ARGON99.999%.



Specifications:



 The main technical specifications of external compression

Model contents

KDON-

1000-2000

KDON-

1500-3000

KDONAR-

3000-3000-90

KDONAR-

4500-4500-140

KDONAR-

6000-6000-200

Gox flow

Nm³/h

1000

1500

3000

4500

6000

Gox purity

%(O2)

99.6

99.6

99.6

99.6

99.6

Gan flow

Nm³/h

2000

3000

3000

4500

8000

Gan purity

Ppm(O2)

≤10

≤10

≤10

≤10

≤10

Ar flow

Nm³/h





90

140

200

Ar purity

Ppm(O2)





≤10

≤10

≤10

Operating

 pressure

Mpa

0.58

0.56

0.56

0.56

0.56

Start-up time

hour(O2)

≤22

≤22

≤24

≤26

≤30

Operating

period

year

≥2

≥2

≥2

≥2

≥2



Oxygen booster with oxygen compressor.



Description:



•Feed air compression, pre-cooling and purification systems

Feed air from atmosphere is removed dust and mechanical impurity through air filter then enters into Air Compressor. Compressed air with pressure of 0.7Mpa(G) is sent into Air Pre-cooling System to be cooled down to 5~8°C.

Cooled air enters into Molecular Sieve Purification System for adsorption in where moistures, carbon dioxide, acetylene and other hydrocarbons impurities are removed. There are two alternative working vertical adsorbers. When one adsorber works another will be in regeneration.

•Air rectification

Purified air with temperature of 10~16°Cfrom Molecular Sieve Purification System is sent into Main Heat-exchanger in where the purified air is cooled down by reflux cryogenic flow to saturation then goes into rectification column.

The liquid air we got in the bottom of column is sent to condensor-vaporizer on the top of column as condensate liquid after throttling. The oxygen riched liquid air in the condenser -vaporizer is sent to main heat exchanger and rewarm up tp -152°C and then goes into turbo expander for expansion. The oxygen riched air return back to the cold end of heat exchanger after expansion, in there oxygen riched air are rewarmed to normal atmospheric temperature and then goes out of cold box. They will be used as regeneration gas and other superlus will be vent.

The product nitrogen drawn out from the top of column to heat exchanger for rewarming and then send out of cold box to nitrogen consumer.



Applications:



we supplied to many countries (Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania) .

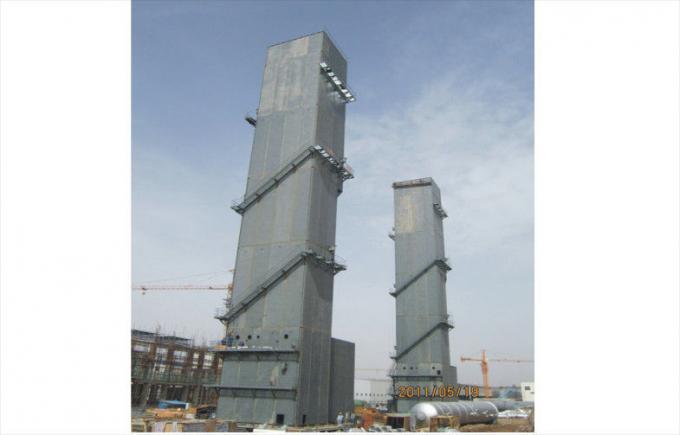

China 6000 m³ / h Air Separation Equipment , 5000 KW ASU Plant For 99.7 % Oxygen suppliers

Competitive Advantage:



High reliability. Low pressure process. Low power consumption. Short time delivery. Good service.



Medium size air separation unit,Medium size oxygen plant,Medium size liquid oxygen plant,Medium size nitrogen plant,Medium size liquid nitrogen plant,Medium size air separation plant,Medium size oxygen machine,Medium size oxygen equipment,Medium size nitrogen machine,Medium size nitrogen equipment
