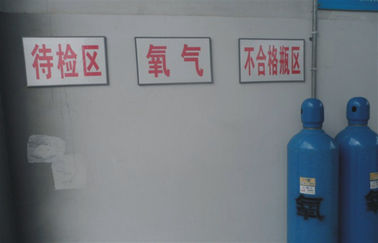

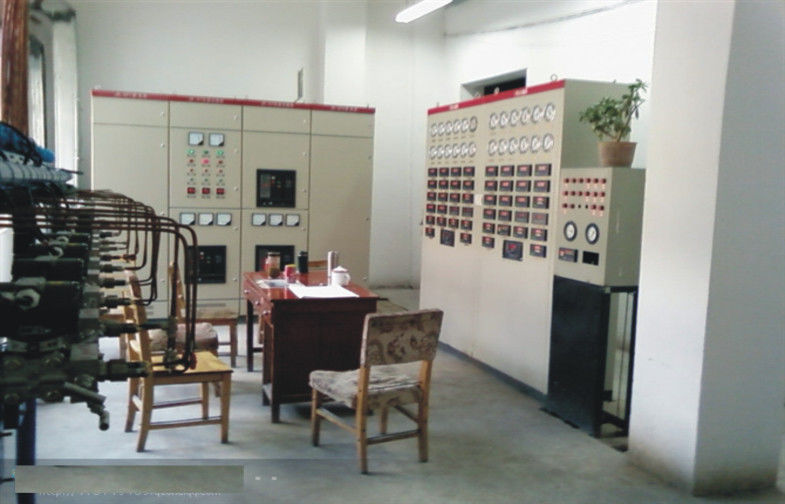

Cryogenic Air Separation Unit , Oxygen Gas Plant Bottling Filling Station For Medical
Place of origin: China(mainland)
Brand name: UIG
Model number: Tipical Type KDON-500/100 Oxygen Plant,
Production capacity:500 M3/hour
Certification: ISO 9001:2000
Life:20 years with proper maintenance
After-sales service provided: Engineers available to service plants overseas
Usage: Industrial and medical (oxygen)
UIG Air separation plants are designed for a vast range of capacities and products summarized below: FOR OXYGEN 99.7 %
Step 1: AIR COMPRESSION: Air is compressed by a fully automatic rotary air compressor and passed on for the purification process at the desired pressure.

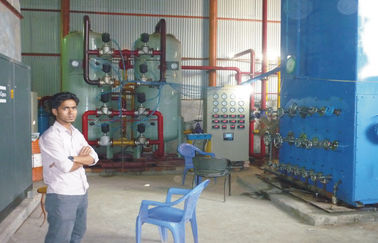

Step 2: AIR PURIFICATION: Air is then passed through various stages to remove the impurities including dust, hydrocarbons and Carbon Dioxide. The Carbon Di-oxide is removed by the process purification skid which has 2 molecular sieve batteries working on a staggered cycle of 8 hours each.
Step 3: AIR SEPARATION: The purified air containing a mixture of oxygen and nitrogen is passed into the CRYOGENIC EXPANDER and Low temperature type heat exchangers for cryogenic cooling to subzero temperatures in order to reach the boiling point of oxygen and nitrogen.
The Plant uses normal temperature molecular sieve adsorption, medium pressure booster expansion reflux flow.
Raw air is sucked from the atmosphere,It is going through filter for removal of dust and mechanical impurities.,then it is compressed to a certain degree by single stage screw compressor,via end stage cooler, air pre-cooling system, the air is cooled to approx. 8℃. After water separation moisture is separated in water separator and then it goes to purifier for removal of moisture, CO2, C2H2 and hydrogen dioxide.
Then most part of air enters main heat exchanger to be cooled to saturated tempt. and partly is liquefied to the lower part of lower column; another part of air is compressed to a certain degree through two stage compression booster, via end stage cooler enters into oxygen heat exchanger to be cooled to be near saturated temperature, then after throttle goes to lower column. Through lower column pre-distillation we can get enriched oxygen liquid air from the bottom of the column. After cooling through sub-cooler,after throttled it goes to the middle part of upper column as reflux liquid for rectification. WN is obtained from the top of lower column, after condensed through condenser-evaporator, a part of WN is used as rectification reflux liquid for lower column; another part after cooling through sub-cooler and after throttling goes to the top of upper column as rectification reflux liquid. Pure liquid oxygen is obtained from the bottom of upper column, and it is condensed by condenser-evaporator. Liquid oxygen is abstracted from the bottom after cooling through sub-cooler, then it goes to LOX pump to be pressurized. It is evaporated in O2 heat exchanger and is reheated to normal tempt.
WN from the top of upper column goes through sub-cooler, the ower part of main heat exchanger to be reheated to a certain tempt. Then it goes to expansion turbine to create cold and returns to sub-cooler and main heat exchanger again to be reheated to normal tempt. A part of it passes to purifier as regenerating gas resource and another part goes to be vented partly.
* This oxygen plant adopts cryogenic separation process. Oxygen is obtained by inner compression, so it
can be both for medical & industrial usage and to be filled into cylinder.
* This development and design of flow is new, my company use the technology to mature.
* Simple operation, convenient maintenance, starting time is short, unit power consumption is low.
* Oxygen of high purity and very stable, meet and exceed technical indicators of 2010in china.
* Whole set of plant adopts skid mount type and connected with high-pressure hose between individual
machines/equipments. So, it shorten installation period accordingly.
* Complete equipment, installation and removal is very simple, easy to move to another area operations.
* Cooling mode of plant adopts air cooling for whole set of plant, no cooling water system required so it also
save investment cost for the owner.
* Security -- The outside compression process is oxygen be compressed at room temperature, The inside
compression process is liquid oxygen be compressed at low temperature, Security than more with the inside
compression process； Extraction a lot of liquid oxygen from evaporation-condenser, To ensure that no
accumulation of hydrocarbons; Evaporation of high pressure with liquid oxygen, reducing the possibility of
hydrocarbon accumulation; Reducing fire hazards.
* Reliability - liquid oxygen pump excellent performance, easy to maintain; Booster compressor is one or two
compression, oxygen compressor Booster compressor is three or five compression, High reliability with
