Product Details:
Payment & Shipping Terms:
|
| Features: | High Reliability / Low Power Consumption | Capacity: | ≥500-1000L/D |
|---|---|---|---|
| Power: | 2.75 KW,4.75 KW,6.05KW | Product Name: | Seawater Desalination Equipment |
| Voltage AC: | 110 V,240 V,380 V | Application: | Water Purify |
| High Light: | seawater desalination plant,seawater desalination system |
||

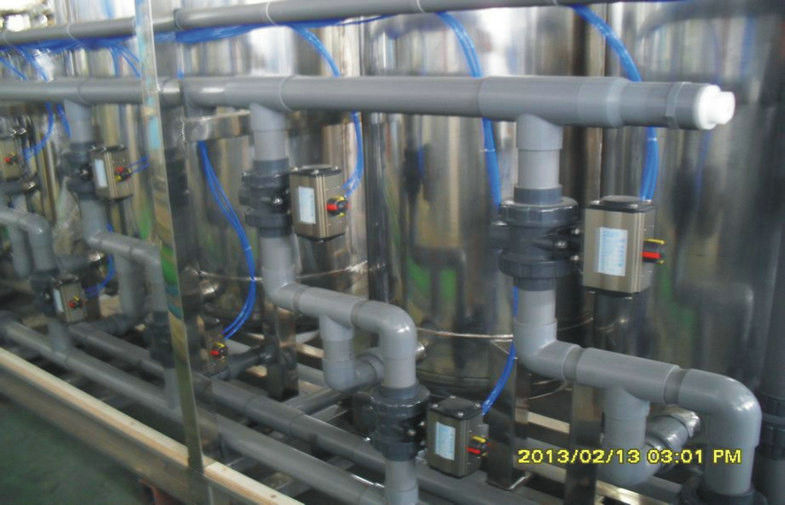

Industrial Seawater Desalination Equipment 10000 / 15000L For Water Treatment
Quick Detail:
Condition: new
Place of origin: China(mainland)
Brand name: UIG
Model number: HD- -IIJ- - 500L, HD- -IIJ- - 750L, HD- -IIJ- - 1000L
Capacity: ≥500-1000L/D
Specifications:
|
Model number |
HD- -IIJ- - 500L |
HD- -IIJ- - 750L |
HD- -IIJ- - 1000L |
|
SIZE(W * D * H) mm |
1780 * 800 * 1350 |
1780 * 800 * 1550 |
1780 * 800 * 1650 |
|
POWER kw |
2.75 KW |
4.75 KW |
6.05KW |
|
Activated carbon filter tank |
ф250*1350*1.5 |
ф300*1350*1.5 |
ф400*1350*1.5 |
|
UF ultrafiltration membrane |
HT-160-5 |
HT-200-5 |
HT-200-5 |
|
Seawater special film |
HD-4040*1 |
HD-4040*1 |
HD-4040*1 |
|
Lift pump |
Ss316 |
Ss316 |
Ss316 |
|
High pressure pump |
Ss316 |
Ss316 |
Ss316 |
|
High pressure pump |
Ss316 |
Ss316 |
Ss316 |
|
Voltage AC |
110 V,240 V,380 V |
110 V,240 V,380 V |
110 V,240 V,380 V |
|
Weight (KG) |
580KG |
780KG |
1300KG |
|
Inlet water (conductivity) |
< 38000ppm |
< 38000ppm |
< 38000ppm |
|
Water production (conductivity) |
< 20ppm |
< 20ppm |
< 20ppm |
|
Capacity L/D |
10000L(10t) |
15000L(15t) |
20000L(20t) |
|
Seawater membrane configuration |
40”* 3 |
40”* 3 |
40”* 6 |
|
Seawater desalination membranes |
SW2-4040 |
SW2-4040 |
SW2-4040 |
|
Fresh water membranes |
AP2-4040 |
AP2-4040 |
AP2-4040 |
Description:
HD - IIJ - * * L series from 10 tons 20 tons per day. The sea water into the attached directly to the international standard of drinking water, product water is alkaline of negative potential, the system can produce two kinds of water quality, water of life, and direct water, can meet the different needs of customers. The placement of features according to customer requirements design as a whole or separately, system bring forward flush function, a differential pressure switch control, system controlled by PLC automatic, reliable operation.
Applications:
Our company can provide the best water treatment technology solutions, high quality technical services and perfect after-sales service. Adapt to different water use of water purification product, has the rich experience in water treatment, it can provide the best water treatment technology solutions and high quality technical service and perfect after-sales service.
Our products have been well received all over the country and also been supplied to many Asian countries.
Competitive Advantage:
High reliability.
Low power consumption.
Short time delivery.
Good service.
