Medium Size Cryogenic Nitrogen / Oxygen Plant , Air Separation Equipment,Liquid AIR SEPARATION PLANT

China Medium Size Cryogenic Nitrogen / Oxygen Plant , Air Separation Equipment,Liquid AIR SEPARATION PLANT supplier
Medium Size Cryogenic Nitrogen / Oxygen Plant , Air Separation Equipment,Liquid AIR SEPARATION PLANT supplier Medium Size Cryogenic Nitrogen / Oxygen Plant , Air Separation Equipment,Liquid AIR SEPARATION PLANT supplier Medium Size Cryogenic Nitrogen / Oxygen Plant , Air Separation Equipment,Liquid AIR SEPARATION PLANT supplier Medium Size Cryogenic Nitrogen / Oxygen Plant , Air Separation Equipment,Liquid AIR SEPARATION PLANT supplier

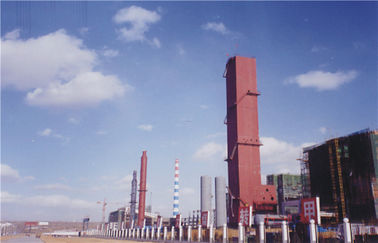

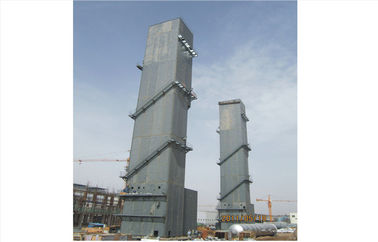

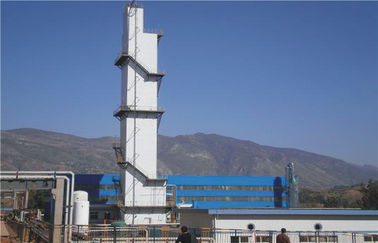

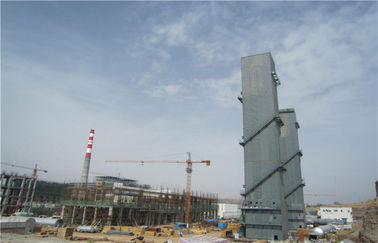

Large Image :  Medium Size Cryogenic Nitrogen / Oxygen Plant , Air Separation Equipment,Liquid AIR SEPARATION PLANT

Product Details:

Place of Origin: Zhejiang ,China ( mainland)
Brand Name: UIG
Certification: ISO 9001:2000
Model Number: KDON, KDONAr

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Sea Worthy Packing
Delivery Time: 120 Days
Payment Terms: T/T ,L/C
Supply Ability: 2-3 Sets Per Month
Contact Now
Detailed Product Description
Production Capacity: 1000-6000 M3/hour Power: 1000-5000 KW
Voltage: 380v,6000V,10000V LO2 Purity: 99.6%
LOX Pressure: 0.08 MPA LO2 Flow: 100, 200, 300, 500, 1000L/h
Product Name: Liquid Oxygen Plant



Medium Size Cryogenic Nitrogen / Oxygen Plant , Air Separation Equipment



Quick Details:



Condition: new

Place of origin: China(mainland)

Brand name: UIG

Model number: KDON, KDONAr, SERIES

Production capacity:1000-6000 m3/hour

Power :1000-5000 KW

Voltage:380v,6000V,10000V

Certification: ISO 9001:2000

Warranty:1 year

Life:20 years with proper maintenance

After-sales service provided: Engineers available to service plants overseas

Usage: Industrial and medical (oxygen,liquid oxygen,nitrogen,liquid nitrogen,argon)

UIG Air separation plants are designed for a vast range of capacities and products summarized below: FOR OXYGEN 99.7 % ,NITROGEN 99.999% AND ARGON99.999%.



Specifications:



LO2   flow

100  L/h

200  L/h

300  L/h

500  L/h

800  L/h

LO2   purity

99.6%

99.6%

99.6%

99.6%

99.6%

LOX   pressure

0.08 MPA

0.08 MPA

0.08 MPA

0.08 MPA

0.08 MPA

LN2   flow

(100 L/h )

(200  L/h )

(300  L/h )

(500  L/h )

(800  L/h )

LN2   purity

99.999%

99.999%

99.999%

99.999%

99.999%

LN2   pressure

0.08 MPA

0.08 MPA

0.08 MPA

0.08 MPA

0.08 MPA

Start-up  time

5-8 Hours

5-8  Hours

5-8 Hours

5-8  Hours

5-8  Hours

Operating period

≥2 Years

≥2  Years

≥2  Years

≥2  Years

≥2  Years



Process:



Air→ Air compressor → Pre-cooler → Purifier →Rectification column and Turbo-expander →liquid oxygen tank or liquid nitrogen tank



Description:



Air enters the suction air filter and after being removed of dust and other mechanical contaminants in it, it is compressed to the pressure of 1.0MPa by air compressor. Air from the air compressor is cooled to 10℃ in the air precooling system and separated condensing water in water separator. after the water being separated its condensed water, taken into the molecular sieve adsorber for removing H2O, C2H2 and CO2.

   Then the cleaned air is divided into two streams, one of them is taken into the rectifying column and cooled by the return waste nitrogen, oxygen,expander air through the main heat exchanger. The steam-liquid air mixture is taken into the lower column for rectifying, and herein the pure nitrogen from the top of the column enters into the evaporator-condenser and condensed by liquid oxygen from the upper column. A part of the liquid nitrogen is fed to the lower column as reflux. The other part after subcooling apart two parts after throttled. One part enters into the top of the upper column,other part enters storage tank as product(LIN).

  Another cleaned stream is compressed in booster end of the booster expansion turbine, then enters the main heat exchanger.  air from the middle and cold end of the main heat exchanger enter into the turbine expansion to generate most refrigeration for need of the plant's operation. After the expanded air return to heat exchange.

The LOX is drawn from oxygen side of the evaporator-condenser, some of them enters storage tank as product.

To meet different demands from customers, different  processes like air cycle process ,nitrogen cycle process, high and low temperature booster turbine expanding processor low temperature refrigerating process etc. are adopted to reduce the power  consumption. In order to achieve stable and reliable operating of plant, PLC control system or DCS control system are recommended.



Applications:



we supplied to many countries (Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania) .



Competitive Advantage:



High reliability. Low pressure process. Low power consumption. Short time delivery. Good service.



Tag: Medium size air separation unit,Medium size air separation plant,Medium size oxygen plant,Medium size air separation equipment,Medium size oxygen machine,Medium size oxygen equipment
