Skid-Mounted Cryogenic Oxygen Nitrogen Gas Plant , Medical Oxygen Generator

Skid-Mounted Cryogenic Oxygen Nitrogen Gas Plant , Medical Oxygen Generator
Skid-Mounted Cryogenic Oxygen Nitrogen Gas Plant , Medical Oxygen Generator Skid-Mounted Cryogenic Oxygen Nitrogen Gas Plant , Medical Oxygen Generator Skid-Mounted Cryogenic Oxygen Nitrogen Gas Plant , Medical Oxygen Generator Skid-Mounted Cryogenic Oxygen Nitrogen Gas Plant , Medical Oxygen Generator

Large Image :  Skid-Mounted Cryogenic Oxygen Nitrogen Gas Plant , Medical Oxygen Generator Get Best Price

Product Details:

Place of Origin: Zhejiang ,China ( mainland)
Brand Name: UIG
Certification: ISO 9001:2000
Model Number: KDO,KDON,

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Sea Worthy Packing
Delivery Time: 120 Days
Payment Terms: T/T ,L/C
Supply Ability: 2-3 Sets Per Month
Detailed Product Description
Gox Flow: 300|350|500|800Nm³/h Gox Purity: ≥99.7%
Operating Pressure: 1Mpa Power: 200-2000 KW
Product Name: Oxygen Generating Equipment Production Capacity: 180-2000 M3/hour
Voltage: 380v,6000V,10000V
High Light:

Oxygen Generating Plant

,

medical oxygen generator

Skid-Mounted Cryogenic Oxygen Nitrogen Gas Plant , Medical Oxygen Generator





Quick Details:



Condition: new

Place of origin: China(mainland)

Brand name: UIG

Model number: KDO, KDON, SERIES

Production capacity:180-2000 m3/hour

Power :200-2000 KW

Voltage:380v,6000V,10000V

Certification: ISO 9001:2000

Warranty:1 year

Life:20 years with proper maintenance

After-sales service provided: Engineers available to service plants overseas

Usage: Industrial and medical (oxygen, liquid oxygen)

UIG Air separation plants are designed for a vast range of capacities and products summarized below: FOR OXYGEN 99.7 % AND NITROGEN 99.999%



Specifications:



Two compression methods:

1)Internal compression air separation plants:

Air-Compressed-Precooling-Purifier-Rectification-heart exchanger (low pressure liquid)-Liquid oxygen pump(pressurized liquid oxygen)-oxygen vaporizer - oxygen cylinders

2)External compression air separation plants:

Air-Compressed-Precooling-Purifier-Rectification-heart exchanger (low pressure gas)-oxygen storage-oxygen compressor(pressurized oxygen)-oxygen cylinders



 The main technical specifications of internal compression

Model contents

KDON-

180-20

KDON-

300-50

KDON-

350-80

KDON-

500-150

KDON-

800-200

KDON-

1000-300

KDON-

2000-700

Gox flow

Nm³/h

180

300

350

500

800

100

100

Gox purity

%(O2)

≥99.7

≥99.7

≥99.7

≥99.7

≥99.7

≥99.7

≥99.7

Gan flow

Nm³/h

20

50

80

150

200

300

700

Gan purity

Ppm(O2)

≤10

≤10

≤10

≤10

≤10

≤10

≤10

Operating

 pressure

Mpa



1

1

1

1

1

1

1

Start-up time

hour

≤10

≤10

≤8

≤8

≤8

≤8

≤8

Operating

period

year

≥1

≥1

≥1

≥2

≥2

≥2

≥2



Oxygen filling (or booster) with liquid pump.



Description:



      The proposed plant works on Internal Compression system, which is equipped with a liquid oxygen pump instead of oxygen compressor for the product compression. As we know that oxygen compressor need much maintenance and replacement, that cost much unnecessary expense and time. Therefore, compared to External Compression, liquid pump saves much maintenance time and cost, and is much easier to operate.

      For Internal Compression system, the product oxygen is compressed through liquid oxygen pump instead of oxygen compressor. Therefore, during the whole process of oxygen compression, there is no interference of Fluorin and moisture. Consequently, the product oxygen from internal compression could be used directly for medical. This advantage helps the customer to seize a wider market.



Applications:

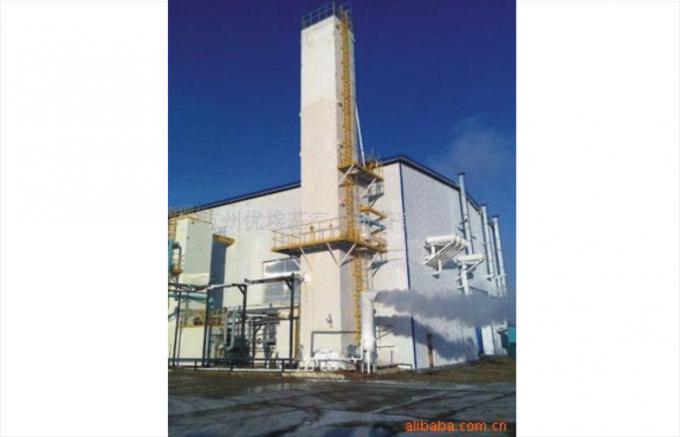

We have supplied to many countries (Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania) .

China 99.7 % High Purity Oxygen Generating Equipment , Cryogenic O2 Plant suppliers

Competitive Advantage:



1. All unit machines are skid-mounted construction, connected by fixed-size short pipe, after testing on supplier site, delivery the plant together with all pipes and valve to User site, the User needn't buy them by themselves, we make ensure the plant's perfect and integrate.

2 The User only need prepare well the workshop, workshop ground and crane is ok, needn't prepare other installation materials and tools.

3 Small volume, occupied small area

4 Complete set of plant be installed without foundation, also has following advantages: Stable running, easy operation, convenient maintenance, without easy-damaged spare parts within two years.

5 To keep all valve's quality, the cold-valve of Rectification column adopt the best-quality valve in Air separation Industry; The Purifier valve adopt stainless steel valve, install thermostability mat in it, ensure little wear, no cooling leak, no gas leak, long life, during the long-term running.

6 All unit machines adopt the advanced technology, so reduce power consumption greatly, save electricity fee.

7 The cooling way of plant is by air, the User needn't make cooling water pool, save capital cost.

8 The installation and commissioning time is very short, it only need 5-10 days.
