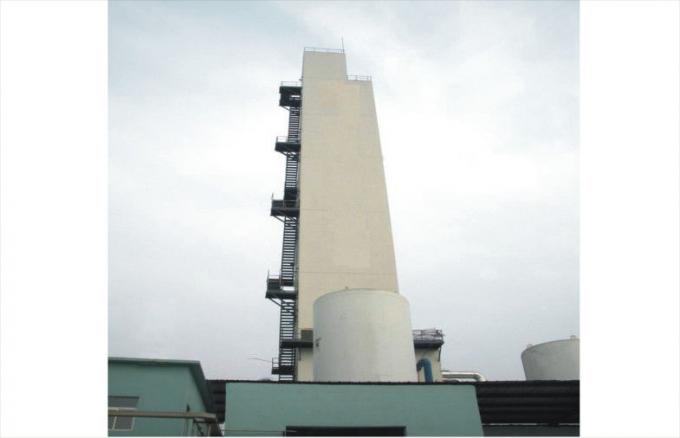

High Purity Oxygen Nitrogen Gas Plant , Cryogenic Medical Air Separation Plant

High Purity Oxygen Nitrogen Gas Plant , Cryogenic Medical Air Separation Plant
High Purity Oxygen Nitrogen Gas Plant , Cryogenic Medical Air Separation Plant High Purity Oxygen Nitrogen Gas Plant , Cryogenic Medical Air Separation Plant High Purity Oxygen Nitrogen Gas Plant , Cryogenic Medical Air Separation Plant

Large Image :  High Purity Oxygen Nitrogen Gas Plant , Cryogenic Medical Air Separation Plant Get Best Price

Product Details:
Place of Origin: Zhejiang ,China ( mainland)
Brand Name: UIG
Certification: ISO 9001:2000
Model Number: KDN,KLN, KDON
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Sea Worthy Packing
Delivery Time: 120 Days
Payment Terms: T/T ,L/C
Supply Ability: 2-3 Sets Per Month
Detailed Product Description
LN2 Flow: 100,200,300,500,800L/h LN2 Pressure: 0.08 MPA
LN2 Purity: 99.999% Power: 60-1000 KW
Product Name: Nitrogen Generating Equipment Production Capacity: 50-2000 M3/hour
Usage: Industrial And Medica(Nitrogen) Voltage: 380v,400V,440V
High Light:

Oxygen Generating Plant

,

Oxygen nitrogen plant

High Purity Oxygen Nitrogen Gas Plant , Cryogenic Medical Air Separation Plant





Quick Details:



Condition: new

Place of origin: China(mainland)

Brand name: UIG

Model number: KDN,KLN, KDON SERIES

Production capacity:50-2000 m3/hour

Power :60-1000 KW

Voltage:380v,400V,440V

Certification: ISO 9001:2000

Warranty:1 year

Life:20 years with proper maintenance

After-sales service provided: Engineers available to service plants overseas

Usage: Industrial and medical (oxygen, liquid oxygen, nitrogen, liquid nitrogen)

UIG Air separation plants are designed for a vast range of capacities and products summarized below: FOR OXYGEN 99.7 % AND NITROGEN 99.999%



Specifications:



LO2   flow

100  L/h

200  L/h

300  L/h

500  L/h

800  L/h

LO2   purity

99.6%

99.6%

99.6%

99.6%

99.6%

LOX   pressure

0.08 MPA

0.08 MPA

0.08 MPA

0.08 MPA

0.08 MPA

LN2   flow

(100 L/h )

(200  L/h )

(300  L/h )

(500  L/h )

(800  L/h )

LN2   purity

99.999%

99.999%

99.999%

99.999%

99.999%

LN2   pressure

0.08 MPA

0.08 MPA

0.08 MPA

0.08 MPA

0.08 MPA

Start-up  time

5-8 Hours

5-8  Hours

5-8 Hours

5-8  Hours

5-8  Hours

Operating period

≥2 Years

≥2  Years

≥2  Years

≥2  Years

≥2  Years



The main technical specifications of liquid series ASPs

Model contents

KLN-

8Y

KLN-

30Y

KDON-

100Y/100Y

KDON-

200/200Y

KDON-

300Y/300Y

KDON-

500Y/500Y

KDON-

800Y/800Y

KDON-

1000Y1000Y

Lo2  flow

L/h

--

--

100

200

300

500

800

1000

Lo2   purity

%(o2)

--

--

99.6

99.6

99.6

99.6

99.6

99.6

Lox pressure

Mpa

--

--

~0.03

~0.03

~0.25

~0.25

~0.25

~0.25

LNflow

L/h

8L/h

30L/h

Or 100

Or 200

Or 300

500

Or 800

1000

LNpurity

%(N2)

99.9

99.9

99.999

99.999

99.999

99.999

99.999

99.999

LN2 pressure

Mpa

Ordinary pressure

Ordinary

pressure

~0.025

~0.025

~0.4

~0.4

~0.4

~0.4

Start-up time

h

1

2

5-8

8-12

-16

-22

-20

-26

Operating period

year

--

--

≥2

≥2

≥2

≥2

≥2

≥2



Process:



Air→ Air compressor → Pre-cooler → Purifier →Rectification column and Turbo-expander →liquid oxygen tank or liquid nitrogen tank



Description:



STEP 1 - Air Compression by rotary air compressors.

In the first stage air is compressed at a low pressure of 5-7 bar (Gas plants) to 10 Bar (liquid plants). Air can be compressed at such low pressure by trouble free rotary compressor (Screw / Centrifugal Type advanced technology is employed in lieu of old bulky piston reciprocating compressor).



STEP 2 - Air Pre-Cooling

The second stage of the process uses a low pressure refrigerant for pre-cooling the processed air to temperature around 12 deg c before it enters the purifier.



STEP 3 - Purification of Air by Purifier

The air enters a purifier consisting of twin Molecular Sieve driers, working alternatively. The Molecular Sieves remove the Carbon dioxide & moisture from the process air before the air enters Air Separation Unit.



STEP 4 - Separation of Liquid Air into Oxygen and Nitrogen in Air Separation Column

Oil free, moisture free and Carbon Dioxide free air enters into low pressure plate fin type Heat exchanger where the air is cooled below sub zero temperatures by air expansion process in the turbo expander. Due to the excellent thermal efficiency we can achieve a temperature difference delta t as low as 2 deg c at the warm end of these exchangers.



The air has to be cooled to sub zero temperatures for liquefaction & the cryogenic refrigeration & the cooling is provided by highly efficient turbo expander, which cools the air to temperature almost below -165 to-170 deg C. Air gets liquefied when it enters the air separation column & gets separated into oxygen & nitrogen by the process of rectification.



Oxygen is available in gas or liquid form (as per requirement) at the outlet of the ASU at a purity of 99.6%. Nitrogen is also available at the outlet as a second product at purity of 99.99% up to 3ppm simultaneously without loss of oxygen product (or as specified).



STEP 5 – Product storage

For Gas: The final product in the form compressed Oxygen/Nitrogen goes to the high pressure oxygen cylinders at 150 bar or up to higher UPTO 200 BAR   as required. OR for pipeline supply or captive consumption.



Applications:



we supplied to many countries (Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania) .

China High Purity Nitrogen Generation Plant , Cryogenic Medical Air Separation Plant suppliers

Competitive Advantage:



Higher economic efficiency, good quality, lower transportation cost, better performance price, safety and convenience.



Liquid air separation unit,Liquid nitrogen plant,Liquid air separation equipment,Liquid air separation plant,Liquid nitrogen machine
