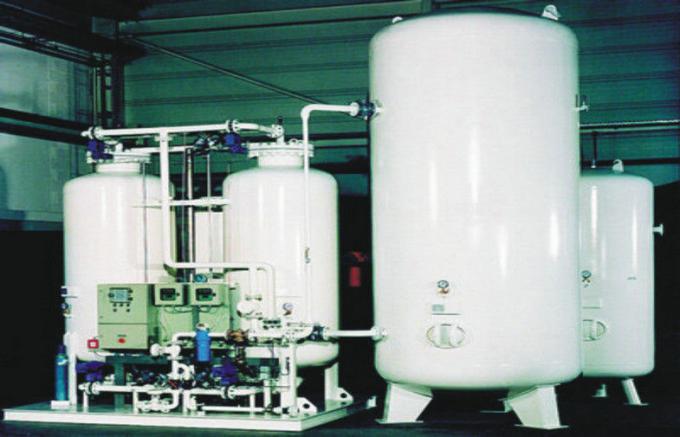

Small High Purity Pressure Swing Adsorption PSA Oxygen Gas Generator Industrial

I'm Online Chat Now
China Hangzhou Union Industrial Gas-Equipment Co., Ltd. certification
China Hangzhou Union Industrial Gas-Equipment Co., Ltd. certification
The quality and service are good, delivery time is punctual every time.

—— Russian Seles

My customer is very satisfied with your sample, now we place an order with you.

—— Russian Porova

Small High Purity Pressure Swing Adsorption PSA Oxygen Gas Generator Industrial

Small High Purity Pressure Swing Adsorption PSA Oxygen Gas Generator Industrial
Small High Purity Pressure Swing Adsorption PSA Oxygen Gas Generator Industrial Small High Purity Pressure Swing Adsorption PSA Oxygen Gas Generator Industrial Small High Purity Pressure Swing Adsorption PSA Oxygen Gas Generator Industrial Small High Purity Pressure Swing Adsorption PSA Oxygen Gas Generator Industrial

Large Image :  Small High Purity Pressure Swing Adsorption PSA Oxygen Gas Generator Industrial Get Best Price

Product Details:
Place of Origin: Zhejiang ,China ( mainland)
Brand Name: UIG
Certification: ISO 9001:2000
Model Number: KZO ,KZON
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Sea Worthy Packing
Delivery Time: 120 Days
Payment Terms: T/T ,L/C
Supply Ability: 3 Sets Per Month
Detailed Product Description
Production Capacity: 50/60/80/100 M3/hour Voltage: 380v,400V,440V
O2 Pressure: 15 -25MPA O2 Flow: 50, 60, 80, 100m³/h
O2 Purity: ≥99.7% Power: 76-138 KW(Shaft Power)
Product Name: PSA Oxygen Generator Usage: Industrial And Medical (oxygen/nitrogen)
High Light:

oxygen nitrogen plant

,

oxygen nitrogen plants

Small High Purity Pressure Swing Adsorption PSA Oxygen Gas Generator Industrial





Quick Details:



Condition: new

Place of origin: China(mainland)

Brand name: UIG

Model number: KZO, KZON TYPE

Production capacity:50/60/80/100 m3/hour

Power :76-138 KW(Shaft power)

Voltage:380v,400V,440V

Certification: ISO 9001:2000

Warranty:1 year

Life:20 years with proper maintenance

After-sales service provided: Engineers available to service plants overseas

Usage: Industrial and medical (oxygen, nitrogen) .

UIG Air separation plants are designed for a vast range of capacities and products summarized below: FOR OXYGEN 99.7 % AND NITROGEN 99.999%



Specifications:



Product with oxygen

O2   flow

50  m³/h

60  m³/h

80  m³/h

100  m³/h

O2   purity

≥99.7%

≥99.7%

≥99.7%

≥99.7%

O2   pressure

15 -25MPA

15 -25MPA

15 -25MPA

15 -25MPA

Start-up  time

8-12 Hours

8-12 Hours

8-12 Hours

8-12 Hours

Operating  period

≥1  Years

≥1  Years

≥1  Years

≥1  Years



Product with oxygen or nitrogen

O2   flow

50  m³/h

60  m³/h

80  m³/h

100  m³/h

O2   purity

≥99.7%

≥99.7%

≥99.7%

≥99.7%

O2   pressure

15 -25MPA

15 -25MPA

15 -25MPA

15 -25MPA

N2   flow

Or (50m³/h )

Or (60m³/h )

Or (80m³/h )

Or (100m³/h )

N2   purity

99.999%

99.999%

99.999%

99.999%

N2   pressure

15 -25MPA

15 -25MPA

15 -25MPA

15 -25MPA

Start-up  time

8-12 Hours

8-12 Hours

8-12 Hours

8-12 Hours

Operating  period

≥1  Years

≥1  Years

≥1  Years

≥1  Years



Description:



You may find that the connection between individual machines & equipments is high pressure flexible tube, this is one of the advanced features for this plant as designed. It will definitely save installation period on site.

Compressed the liquid oxygen through liquid pump. So the oxygen can be used in hospital.

The connection pipes are high pressure soft pipe, easy connect and separate,The time of installation and testing is not more than 30 days.

Adopted screw compressor (main machine imported from world famous company). Keep the plant normal work long time,Easy operate and maintenance.

Air cooling type is adopted for whole set of plant, there is no cooling water required.

Need very small area (Land  Area 40㎡,Factory Area 90㎡),.



Skid mounted type air separation plant, connected by high pressure flexible pipe between individual machines/equipments ,



Plant features



1) This air separation plant adopts cryogenic separation process. Oxygen is obtained by inner compression, so it can be both for medical & industrial usage and to be filled into cylinder.

2) Whole set of plant adopts skid mount type and connected with high-pressure hose between individual machines/equipments. So, it no need any foundation required to save investment cost for civil construction and shorten installation period accordingly.

3) Cooling mode of plant adopts air cooling for whole set of plant, no cooling water system required so it also save investment cost for the owner.

4) This plant can be shifted to any second plant to operate because of its no fixed foundation feature. So it is a mobile type plant.



Applications:



we supplied to many countries (Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania) .



Process:



Air→ Air compressor → Pre-cooler → Purifier →Rectification column and Turbo-expander →liquid oxygen tank or liquid nitrogen tank

China High Purity Pressure Swing Adsorption PSA Oxygen Generator For Industry suppliers

Competitive Advantage:



Higher economic efficiency, good quality, lower transportation cost, better performance price, safety and convenience.



 Small size air separation unit,Small size air separation plant,Small size liquid oxygen plant,Small size air separation equipment,Small size oxygen machine,Small size oxygen equipment
