Low Pressure Liquid Oxygen Nitrogen Plant / Oxygen Cylinder Filling Plant 2000 m³/h

Large Image :  Low Pressure Liquid Oxygen Nitrogen Plant / Oxygen Cylinder Filling Plant 2000 m³/h

Product Details:

Place of Origin:Zhejiang ,China ( mainland)
Brand Name:UIG
Certification:ISO 9001:2000
Model Number:KDON

Payment & Shipping Terms:

Minimum Order Quantity:1 SET
Price:Negotiation
Packaging Details:Sea Worthy Packing
Delivery Time:120 Days
Payment Terms:T/T ,L/C
Supply Ability:2-3 Sets Per Month
Detailed Product Description
Gan Flow: 20,50,80,100,150,200,300Nm³/h Gan Purity: ≤10Ppm(O2)
Operating Pressure: 1.2Mpa,1Mpa Power: 60-1000 KW
Product Name: Liquid Nitrogen Plant Production Capacity: 50-2000 M3/hour
Voltage: 380v,400V,440V

Low Pressure Liquid Oxygen Nitrogen Plant / Oxygen Cylinder Filling Plant 2000 m³/h





Quick Details:



Condition: new

Place of origin: China(mainland)

Brand name: UIG

Model number: KDON SERIES

Production capacity:50-2000 m3/hour

Power :60-1000 KW

Voltage:380v,400V,440V

Certification: ISO 9001:2000

Warranty:1 year

Life:20 years with proper maintenance

After-sales service provided: Engineers available to service plants overseas

Usage: Industrial and medical (oxygen, liquid oxygen, nitrogen, liquid nitrogen)

UIG Air separation plants are designed for a vast range of capacities and products summarized below: FOR OXYGEN 99.7 % AND NITROGEN 99.999%



Specifications:



Two compression methods:

1)Internal compression air separation plants:

Air-Compressed-Pre-cooling-Purifier-Rectification-heart exchanger (low pressure liquid)-Liquid oxygen pump(pressurized liquid oxygen)-oxygen vaporizer - oxygen cylinders

2)External compression air separation plants:

Air-Compressed-Precooling-Purifier-Rectification-heart exchanger (low pressure gas)-oxygen storage-oxygen compressor(pressurized oxygen)-oxygen cylinders

 The main technical specifications of internal compression

Model contents

KZON-

50/50

KZON-

80/80

KZON-

100/100

KDON-

180-20

KDON-

300-50

KDON-

350-80

KDON-

500-150

KDON-

800-200

KDON-

1000-300

Gox flow

Nm³/h

50

80

100

180

300

350

500

800

100

Gox purity

%(O2)

≥99.6

≥99.6

≥99.6

≥99.6

≥99.6

≥99.6

≥99.6

≥99.6

≥99.6

Gan flow

Nm³/h

50

80

100

20

50

80

150

200

300

Gan purity

Ppm(O2)

≤10

≤10

≤10

≤10

≤10

≤10

≤10

≤10

≤10

Operating

 pressure

Mpa



1.2

1.2

1.2

1

1

1

1

1

1

Start-up time

hour

≤12

≤12

≤12

≤10

≤10

≤8

≤8

≤8

≤8

Operating

period

year

≥1

≥1

≥1

≥1

≥1

≥1

≥2

≥2

≥2



Oxygen filling (or booster) with liquid pump.



Description:



Internal compression air separation plants:

Air-Compressed-Precooling-Purifier-Rectification-heart exchanger (low pressure liquid)-Liquid oxygen pump(pressurized liquid oxygen)-oxygen vaporizer - oxygen cylinders



The Plant uses normal temperature molecular sieve adsorption, medium pressure booster expansion reflux flow.

Raw air is sucked from the atmosphere,It is going through filter for removal of dust and mechanical impurities.,then it is compressed to a certain degree by single stage screw compressor,via end stage cooler, air pre-cooling system, the air is cooled to approx. 8℃. After water separation moisture is separated in water separator and then it goes to purifier for removal of moisture, CO2, C2H2 and hydrogen dioxide.

Then most part of air enters main heat exchanger to be cooled to saturated tempt. and partly is liquefied to the lower part of lower column; another part of air is compressed to a certain degree through two stage compression booster, via end stage cooler enters into oxygen heat exchanger to be cooled to be near saturated temperature, then after throttle goes to lower column. Through lower column pre-distillation we can get enriched oxygen liquid air from the bottom of the column. After cooling through sub-cooler,after throttled it goes to the middle part of upper column as reflux liquid for rectification. WN is obtained from the top of lower column, after condensed through condenser-evaporator, a part of WN is used as rectification reflux liquid for lower column; another part after cooling through sub-cooler and after throttling goes to the top of upper column as rectification reflux liquid. Pure liquid oxygen is obtained from the bottom of upper column, and it is condensed by condenser-evaporator. Liquid oxygen is abstracted from the bottom after cooling through sub-cooler, then it goes to LOX pump to be pressurized. It is evaporated in O2 heat exchanger and is reheated to normal tempt and then directly goes to oxygen filling ramp for filling of cylinders.

WN from the top of upper column goes through sub-cooler, the ower part of main heat exchanger to be reheated to a certain tempt. Then it goes to expansion turbine to create cold and returns to sub-cooler and main heat exchanger again to be reheated to normal tempt. A part of it passes to purifier as regenerating gas resource and another part goes to be vented partly.



No.

Name

Qt.

1

Slight-oil lub. water cooling air compressor

1set

2

Air precooling unit

1set

3

MS purifier

1set

4

Heater for MS purifier

1set

5

Distillation column

1set

6

Heater fro distillation column

1 set

7

Evaporator

1set

8

Expansion turbine

1set

9

LOX pump

1set

11

Instrument & electric control panel

1set




Applications:

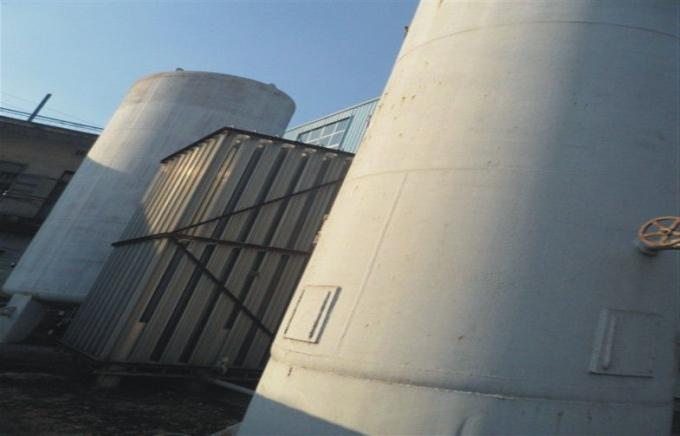

we supplied to many countries (Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania) .

China 50 - 2000 m³ / h Liquid Oxygen Nitrogen Plant , Nitrogen Generation Plant suppliers

Competitive Advantage:



1. No gas loss and high yield

2.Very simple and safe to operate

3. Low power consumption

4. Low Working Pressure

5. Low Operating Cost

6. Low Maintenance Cost

7. The life span is over 20 years

8. Engineers available to service machinery overseas

9. All gas and liquid plants are optimized to meet customer-specific site requirements
