Air Separation Plant Liquid Nitrogen Plant , High Purity Nitrogen Generator 380V

Air Separation Plant Liquid Nitrogen Plant , High Purity Nitrogen Generator 380V supplier Air Separation Plant Liquid Nitrogen Plant , High Purity Nitrogen Generator 380V supplier

Large Image :  Air Separation Plant Liquid Nitrogen Plant , High Purity Nitrogen Generator 380V

Product Details:

Place of Origin:Zhejiang ,China ( mainland)
Brand Name:UIG
Certification:ISO 9001:2000
Model Number:KDN,KLN,KDON

Payment & Shipping Terms:

Minimum Order Quantity:1 SET
Price:Negotiation
Packaging Details:Sea Worthy Packing
Delivery Time:120 Days
Payment Terms:T/T ,L/C
Supply Ability:2-3 Sets Per Month
Detailed Product Description
LN2 Flow: 8|30|100|200|300|500|800|1000L/h LN2 Purity: 99.9%|99.999%
LN2 Pressure: ~0.025|~0.4Mpa Power: 76-1000 KW
Product Name: Liquid Nitrogen Plant Production Capacity: 50-1000 M3/hour
Voltage: 380v,400V,440V

Air Separation Plant Liquid Nitrogen Plant , High Purity Nitrogen Generator 380V





Quick Details:



Condition:new

Place of origin:China(mainland)

Brand name:UIG

Model number: KDN,KLN,KDON SERIES

Production capacity:50-1000 m3/hour

Power :76-1000 KW

Voltage:380v,400V,440V

Certification:ISO 9001:2000

Warranty:1 year

Life:20 years with proper maintenance

After-sales service provided:Engineers available to service plants overseas

Usage:Industrial (oxygen,liquid oxygen,nitrogen,liquid nitrogen)

UIG Air separation plants are designed for a vast range of capacities and products summarized below: FOR OXYGEN 99.7 % AND NITROGEN 99.999%



Specifications:



The main technical specifications of liquid series ASPs

Model contents

KLN-

8Y

KLN-

30Y

KDON-

100Y/100Y

KDON-

200/200Y

KDON-

300Y/300Y

KDON-

500Y/500Y

KDON-

800Y/800Y

KDON-

1000Y1000Y

Lo2  flow

L/h

--

--

100

200

300

500

800

1000

Lo2   purity

%(o2)

--

--

99.6

99.6

99.6

99.6

99.6

99.6

Lox pressure

Mpa

--

--

~0.03

~0.03

~0.25

~0.25

~0.25

~0.25

LN2  flow

L/h

8L/h

30L/h

Or 100

Or 200

Or 300

500

Or 800

1000

LN2  purity

%(N2)

99.9

99.9

99.999

99.999

99.999

99.999

99.999

99.999

LN2 pressure

Mpa

Ordinary pressure

Ordinary

pressure

~0.025

~0.025

~0.4

~0.4

~0.4

~0.4

Start-up time

h

1

2

5-8

8-12

-16

-22

-20

-26

Operating period

year

--

--

≥2

≥2

≥2

≥2

≥2

≥2



Industrial nitrogen GB 3864-83

Index

Index

I

II

Class A

Class B

1.Nitrogen content,volume%     ≥

99.5

99.5

98.5

2.Oxygen content,volume%    ≤

0.5

0.5

1.5

3.Water content

Free water,ml/bottle≤

Dew point,℃    ≤





-

100

-43






Description:



Raw air is sucked from atmosphere. After removing of the mechanical impurity by air filter, it goes into the screw air compressor to be compressed to 1.0Mpa. After being cooled and separated from the water drops, it goes to the air precooler to be cooled to about 8 .0℃. It is separated from water drops through water separator for removal of saturated water, carbon dioxide and some hydrocarbon such as acetylene.

  Purified air is cooled by the counter flow in the main heat exchanger to saturated tempt., and part of them flows to the rectifification column after being liquefied.  After rectifying, the liquid air is sucked from the bottom of the column and cooled in subcooler and throttled to condenser-evaporator to evaporate as cold resource. The nitrogen in the top of the column is evaporated to condensation by liquid air. Most of the condensed liquid is used as reflux, the rest of them flow to the liquid storage tank to discharge regularly to the liquid storage tank out of the column.

To meet different demands from customers, different  processes like air cycle process ,nitrogen cycle process, high and low temperature booster turbine expanding processor low temperature refrigerating process etc. are adopted to reduce the power  consumption. In order to achieve stable and reliable operating of plant, PLC control system or DCS control system are recommended.



Applications:

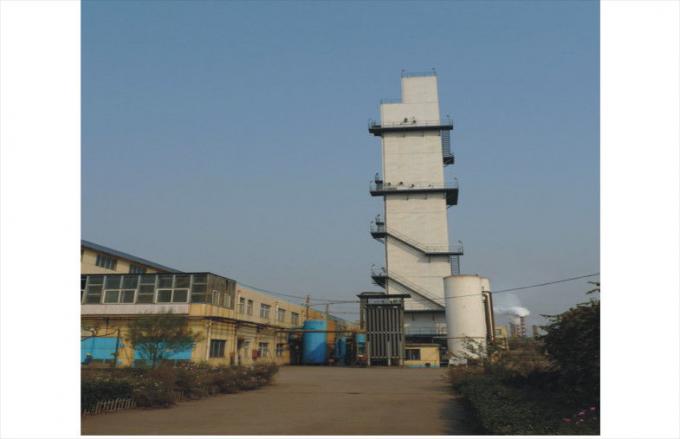

we supplied to many countries (Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania) .

China High Purity LN2 / Nitrogen Generator 76 - 1000kw Liquid Nitrogen Plant suppliers

Competitive Advantage:



High reliability.
Low pressure process.
Low power consumption.
Short time delivery. Good service.
Leading technical level, perfect technical development group .
Successful experience of made many plants



 Industrial air separation unit,Industrial nitrogen plant,Industrial liquid nitrogen machine,Industrial air separation equipment,Industrial air separation plant,Industrial liquid nitrogen machine,Industrial nitrogen equipment,Industrial liquid nitrogen equipment
